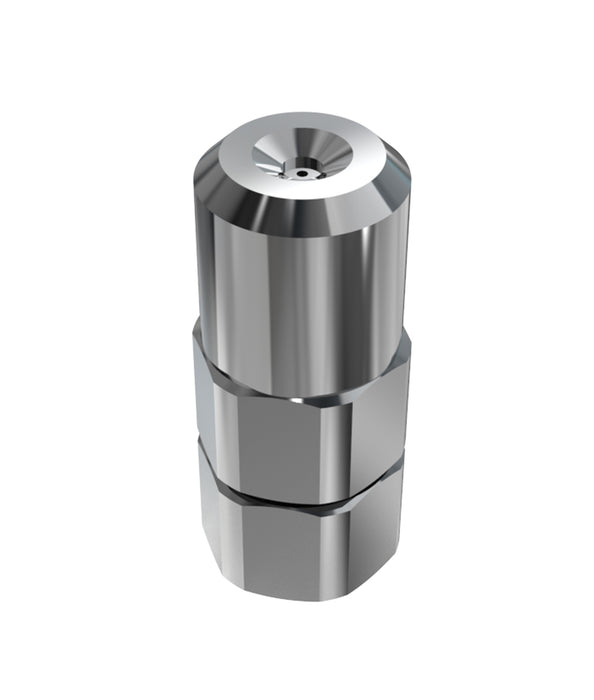

SDX® III
by DELEVAN
Construction and Materials

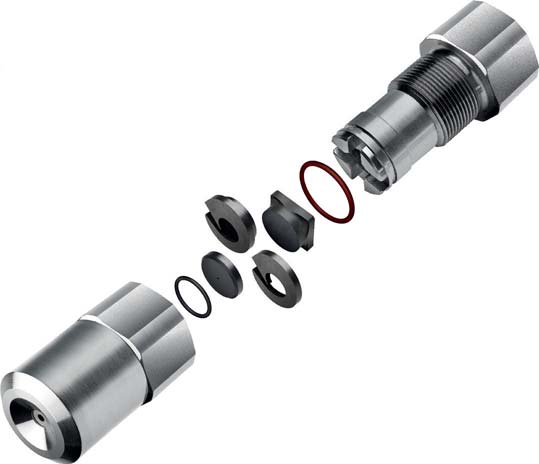

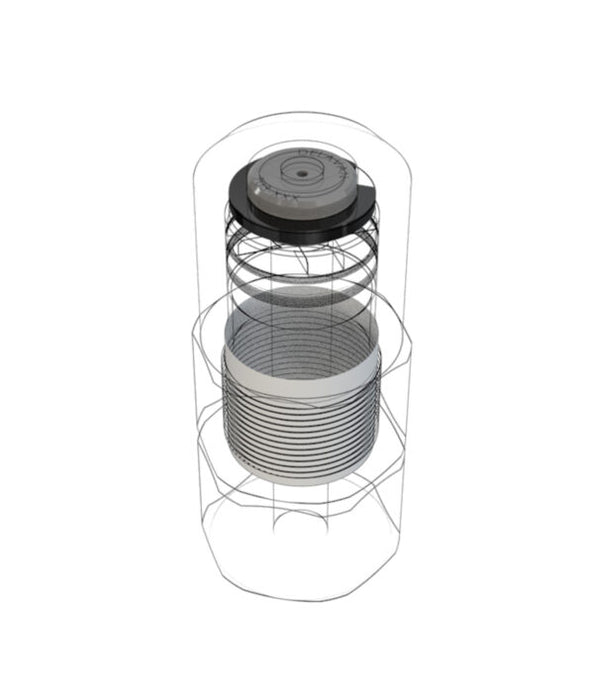

- Six part construction (see part and material list below).
- O-ring seals allow assembly and disassembly without tools.

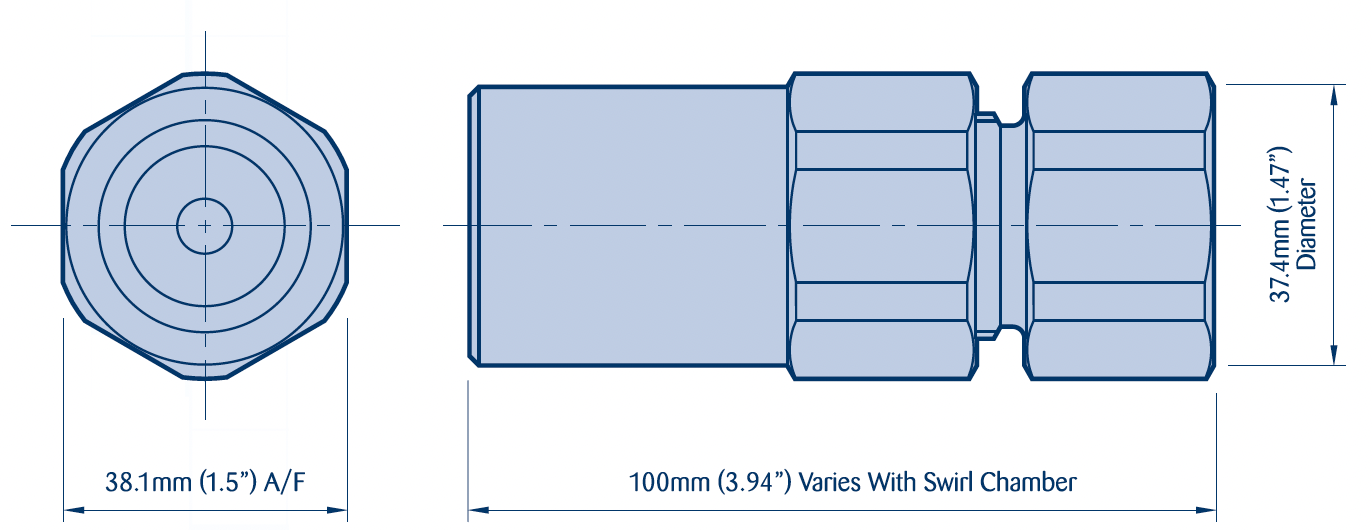

- Body and adaptors are produced from hexagon barstock with other materials in round bar with flats.
- Nozzle bodies and adaptors are available 316 Stainless Steel. Other materials are available on special request.
- Orifice discs are easily removable and are available in Tungsten Carbide, Chrome Carbide and Ceramic.
- Swirl chambers are standard in Tungsten Carbide, Hardened Stainless Steel or Ceramic.
- End plates are available in Tungsten Carbide and Ceramic.
- Combined swirl chamber/end plate is available in Tungsten Carbide only.
- O-Rings are in Silicone or Viton.
Order Example
- Please indicate all component parts and materials when ordering.
Max. Design Pressure: 350 Bar.G.
Max Design Temperature: 150°
